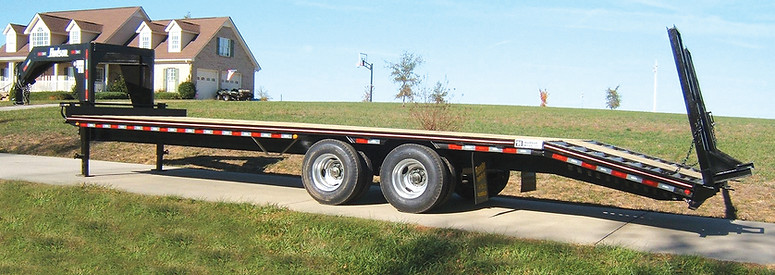

PRO SERIES - HTDGD - 10 Ton Gooseneck Trailer
$11,229.00
STANDARD SPECIFICATIONS
GVWR: 25,990 lbs.
Empty Weight: 6,730 lbs.
Maximum Payload: 19,260 lbs. w/adequate hitch load
Overall Length: 38'
Deck Length: 28' (23' Flat w/ 5' Beavertail)
Overall Width: 96"
Deck Width: 96"
Deck Height: 35"
​
Beavertail: 5' Cleated
Loading Ramp: 5' Cleated w/ Spring Assist
Hitch: Adj. 2 5/16" Ball Coupler
Hitch Height: 42" Adjustable
Tongue: Gooseneck w/ Tool Tray
Axles: (2) 10K Dexter oil bath w/Brakes
​
Suspension: Multi-Leaf Spring
Brakes: Electric / Self-Adjust 12 1/4" x 3 3/8"
Wheels: 16" x 6" Dual 8-Bolt
Tires: LT235/85R16" 10-PR
Jack Capacity: (2) 12,000 lb. w/ Drop Foot
Main Frame: 10" Channel @ 15.3#
Crossmembers: Double 3" Channel @ 7#
​
Side Rail: 6" Channel @ 8.2#​
Decking: 2" x 8" Treated Pine
Tie Downs: Rub Rail w/ Stake Pockets
Lights: DOT LED Sealed Rubber-Mounted w/conduit
Colors: Yellow or Black​
OPTIONS
LTBL - Lockable Toolbox Lid $129.00
​
KP - Adjustable Kingpin $182.00
​
8WOD - 2" x 8" White Oak Deck $261.00
8WARL - Additional Ramp Length (1' Maximum) $72.00
WIR&B - Wood Insert Ramps & Beavertail N/C
8WADL - Additional Deck Length (4' Max) $158.00/ft.
​
8W102 - 102" Wide $232.00
​
FAR - Fully Adjustable Ramps $115.00
​
3R - 3rd Ramp $359.00
​
DON - 5' x 8' Deck on top of gooseneck $526.00
​
PBT - Pop Up Beavertail $877.00
DTSLG - Dual 2 Speed Landing Gear $385.00
​
TC - Trickle Charger for Break-A-Way $60.00
​
MW - Modular Wiring $201.00
​
STM - Spare Tire Mount $91.00
​
STR - Spare Tire & Rim (call for price)
​
CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange $182.00
​
Note: On this model, the deck is flush with the top of the frame which makes it ideal for loading pallets or other material from the side.
