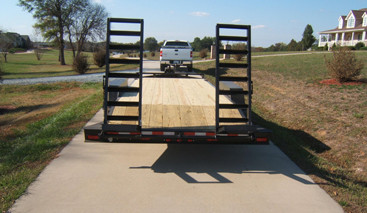

VBCBH - 6 Ton Fender Equipment Trailer
$4,184.00
STANDARD SPECIFICATIONS
GVWR: 14,790 lbs.
Empty Weight: 2,790 lbs.
Maximum Payload: 12,000 lbs. W/ adequate hitch load
Overall Length: 22'
Deck Length: 16'
Overall Width: 96"
Deck Width: 77"
Deck Height: 20"
Loading Ramp: 4' Cleated Fully Adjustable
Hitch: Adjustable 2 1/2" Eye
Hitch Height: 15" to 23"
Fenders: Diamond Plate
Axles: (2) 6,000 lb w/ Brakes
Suspension: Multi-Leaf Spring
Brakes: Electric w/ Breakaway
Wheels: 16" x 6" Single 8-bolt
Tires: 7.50-16LT Bias
Jack Capacity: 5,000 lb. w/Foot
Main Frame: 6" x 4" x 3/8" Angle @ 12.3#
Crossmembers: 3" channel @ 3.5#
Decking: 2" X 8" Treated Pine
Tie Downs: Stake Pockets
Lights: DOT Approved Lighting
Colors: Yellow or Black
OPTIONS
​
VBCBH0618 - 6 Ton Capacity 18' $4,408.00
​
VBCBH0620 - 6 Ton Capacity 20' $4,632.00
​
LTBL - Lockable Toolbox Lid. $128.00
​
TBB - Toolbox Bottom. $109.00
​
6W102 - 102" wide w/84" between the fenders. $164.00
​
JU5KTO7K - 7,000 lb. Jack. $158.00
​
2 5/16"HDBH - 2 5/16" HD Ball Hitch (20K Forged) $32.00
​
2 5/16"HDBH - 2 5/16" HD Ball Hitch (20K Jaw Type) $151.00
​
TC - Trickle Charger for break-a-way kit. $60.00
​
RU - Radial Upgrade (LT235/80R16") $104.00
​
STR - Spare Tire & Rim (call for price)
​
STM - Spare Tire Mount $90.00
​
CO - Colors: Red, Blue, Green, Kubota, & Ditch Witch Orange
$182.00
